Analog Vacuum Transducers

More Details

VSC43 Piezo Vacuum Transducer ● Piezo ● 1400 to 1 mbar

Utilized for computing the absolute pressure in the rough vacuum range, the VSC43 piezo vacuum transducer is compact and highly insensitive towards contamination and dirt due to its strong ceramic sensor.

DESCRIPTION

The FKM sealing makes the ceramic sensor chemically resistant
Highly accurate, reliable and stable
Response time is short
Not affected by contamination
Compensates temperature
Standardized, linear output signal current or voltage
Easily connected to PLCs and other controllers of the system
Vacuum connection over a stainless steel small flange DN 16 ISO-KF with G1/4 female thread

VARIENTS

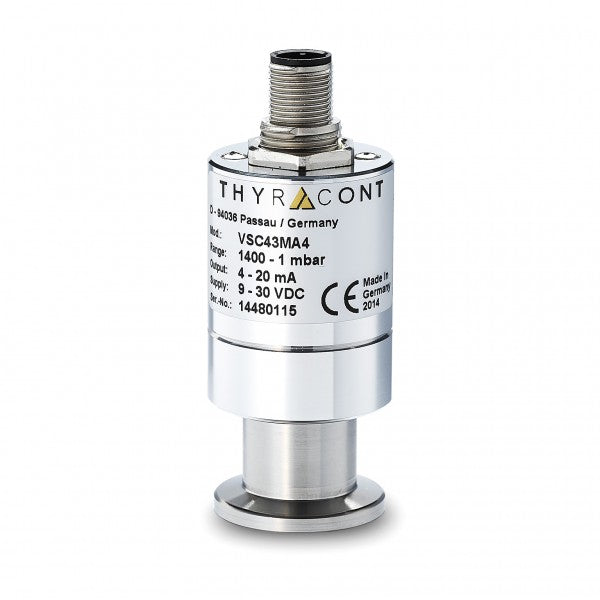

VSC43MA4 Vacuum Transducer ● 4-20 mA output

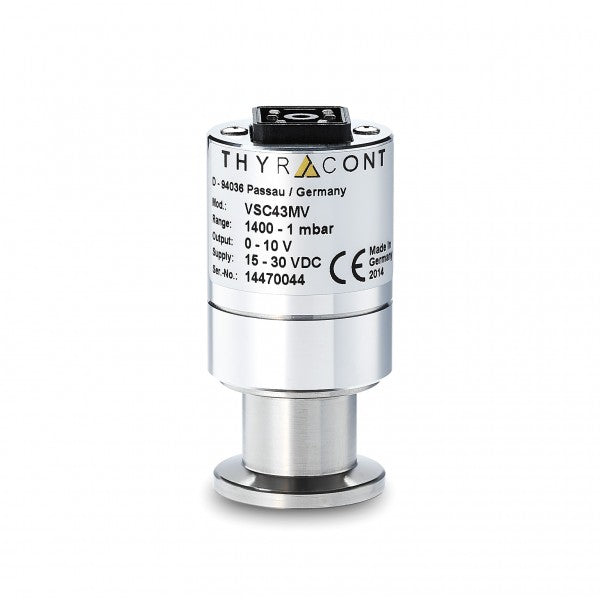

VSC43MV Vacuum Transducer ● 0-10 V output

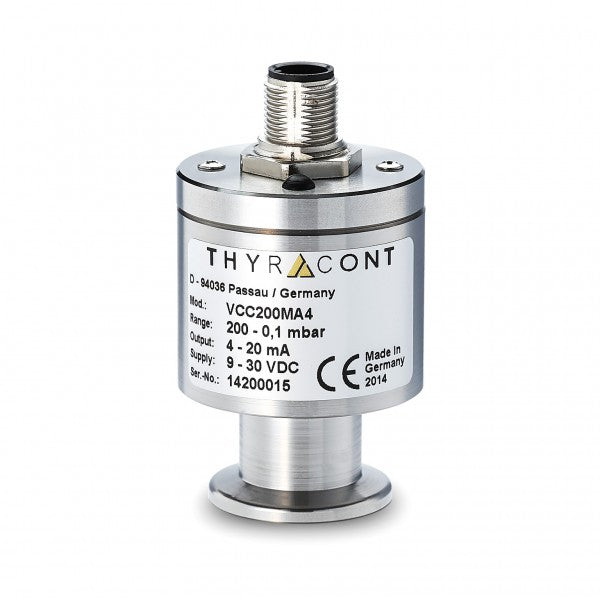

VCC200MA4 Vacuum Transducer ● 4-20 mA output

Being completely independent of gas types even below 20 mbar, and utilized for calculating absolute pressure with high accuracy, the VCC200 capitance vacuum transducer is unaffected by any dirt or contamination due to its durable ceramic sensor.

DESCRIPTION

Superb accuracy
High resolution
Aluminium oxide ceramic sensor is resistant to corrosion
Measurement is independent of gas type
Resistant to dirt
Robust metal housing with protection class IP54
Vacuum connection over a stainless steel small flange DN 16 ISO-KF with G1/4 female thread

The VSP63 has a verified Thyracont impulse Pirani sensor that provides a high resolution wide measuring range. It's a recently developed patented technology who's advanced version - VSP64 utilizes maximum temperature compensation and has improved accuracy and stability.

DESCRIPTION

Highly reliable and excellently reproducible
Immensely compact to suit industrial applications
Large measuring range with higher resolution in the range of rough vacuums
Good resistance against oil and solvent capors is provided by the filament which is protected by a metal screen
Precise push button digital adjustment on zero pressure and atmosphere
Low power consumption
Impulse mode reduces self heating of measuring chamber
Metal sealed stainless steel sensor is ideal for UHV applications

VARIENTS

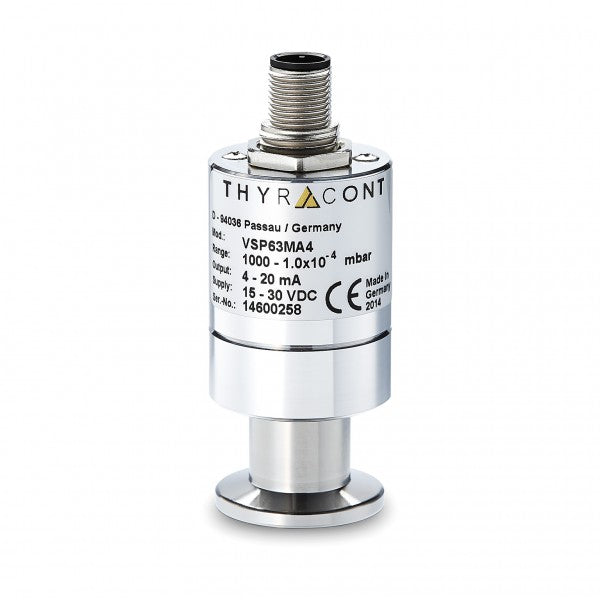

VSP63MA4 Vacuum Transducer ● DN16KF ● 4-20 mA output

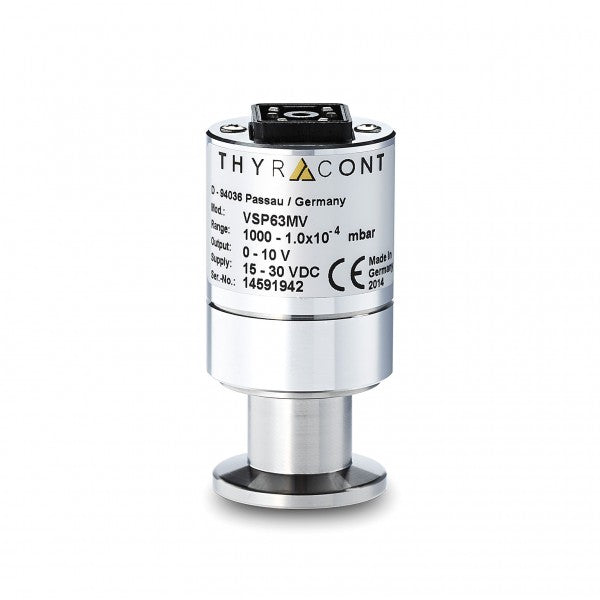

VSP63MV Vacuum Transducer ● DN16KF ● 0-10V output

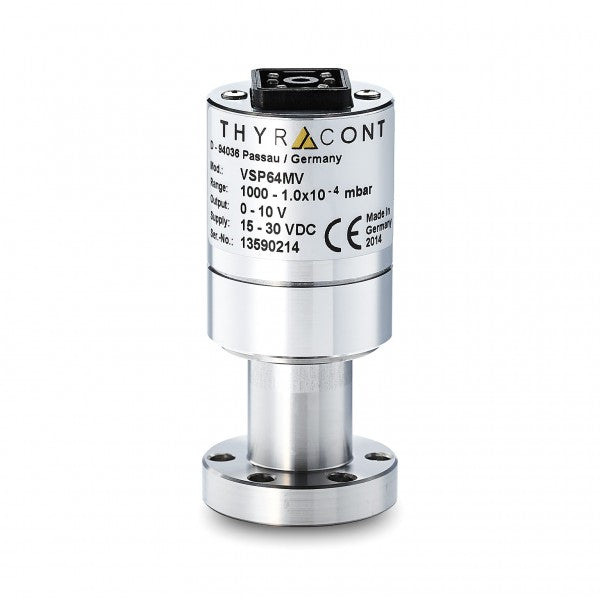

VSP64MV Vacuum Transducer ● DN16CF-F ● 0-10 V output

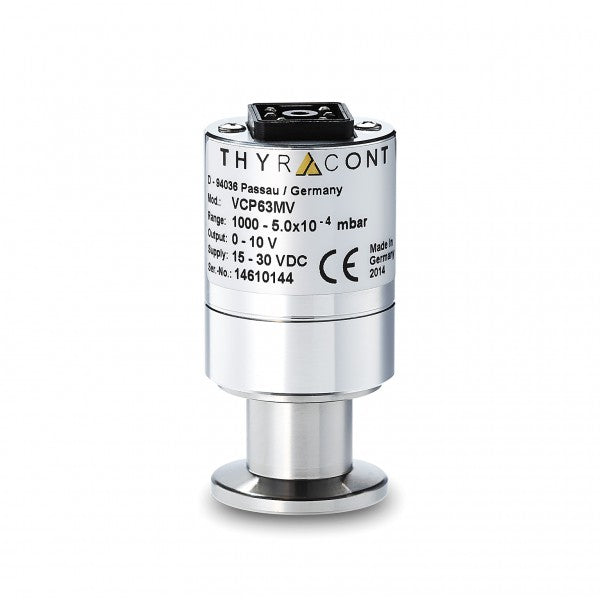

VCP63 Vacuum Transducer ● Pirani ● for corrosive media ● 1000 to 1e-4 mbar

The VCP63, is highly accurate and stable due to maximum temperature compensation with its patented impulse ramp principle. It's platinum/filament makes it an ideal choice for corrosive application in the range of fine vacuums.

DESCRIPTION

Ideal for corrosive media
Highly reliable
Chemical resistance is high due to the platinum rodium filament
Good resistance against oil and solvent vapors due to the Pirani sensor which is protected by a metal screen
Resolution is high even in he rough vacuum range
Precise push button digital adjustment on zero pressure and atmosphere
Measurements are stable due to maximum temperature compensation. It is ideal for UHV applications due to the metal sealed sensor.

VSP841 / VSP842 Vacuum Sensor ● Pirani ● Passive ● 100 to 1e-3 mbar

A robust heat conduction sensor which is also of a compact size, the VSP841/42 Pirani half bridge calculates absolute pressure in the range of fine vacuums. It is temperature compensated and pre-adjusted.

Ideally used as a sensor tracking vacuum isolations and for controlled and passive bridge circuits.

DESCRIPTION

Economical Pirani sensor
Excellent long term stability
Durable sensor, elastic helix filament
Filament protected by a metal screen from condensing solvents
Sensor is pre-adjusted
Extremely minute sensor volume
Screwable, electric connector
Evaluation circuit attainable on request

VARIENTS

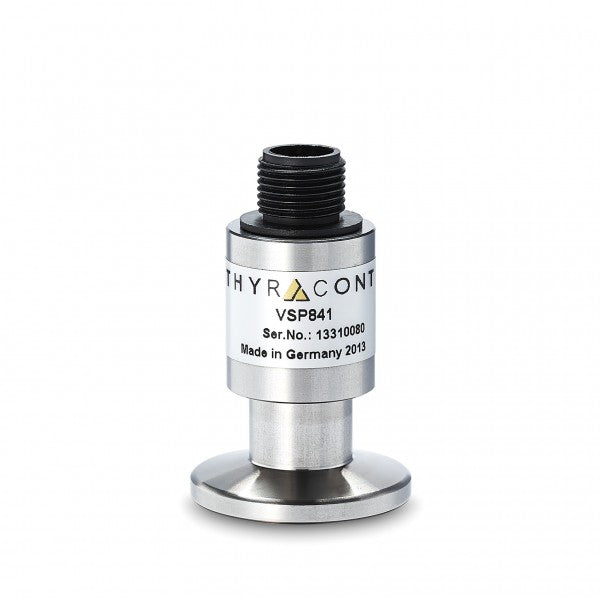

VSP841 Passive Vacuum Sensor ● DN16KF

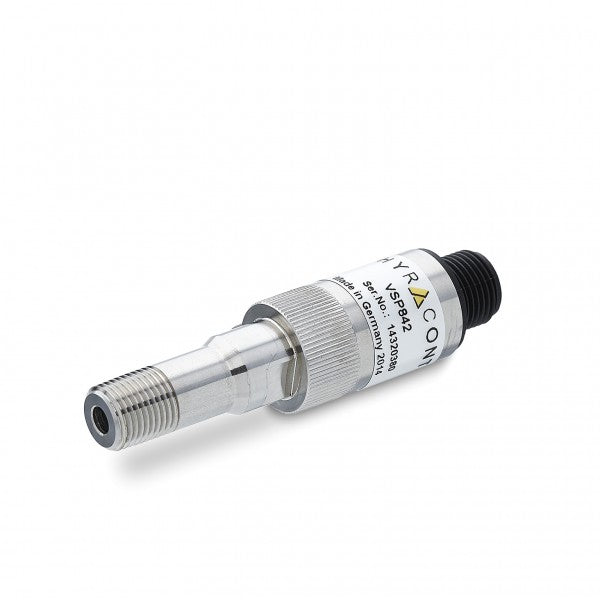

VSP842 Passive Vacuum Sensor ● 1/8 NPT thread

VD6 Vacuum Display and Control Unit ● 1 Channel

With a relay monitor placed on the front panel, allowing continuous operation control and management of two switch points, the Thyracont VD6 universal vacuum indicator and controller is developed specially for panel mounting.

DESCRIPTION

2- or 3-state-control: 2 relay switch points (switch-over), adaptable over the entire range
Intuitive operation
Large, high-contrast LED-display
Long table runs due to the Thyracont transducers with 4 - 20 mA signal output
Foil-sealed front panel
Panel mounting through DIN case 96 x 48 mm
Process control and documentation through USB interface for

VARIENTS

VD62P230 ● Set VD6S2230 with VSC43MA4 ● 1200 to 1 mbar
VD64P230 ● Set VD6S2230 with VSP63MA4 ● 1000 to 1e-4 mbar
VD6S2115 Vacuum Display and Control Unit ● 115 VAC
VD6S2230 Vacuum Display and Control Unit ● 230 VAC

VD12 Vacuum Display And Control Unit ● 2 Channels

VD12 is an intelligent control unit suitable for applications including apparatus and plant engineering or special construction of equipments.

DECRIPTION

Simultaneously controls 2 measuring channels
Can be integrated with all Smartline and 0-10 V Analogline transducers
Easy operation by menu driven operator guidance
2 potential-free relay switches
Huge graphic LCD display with background illuminating
Process documentation and setpoint programming through USB interface
VacuGraph software: Documentation and evaluation of vacuum processes, remote control

VARIENTS

VD122P ● Set VD12 with VSC43MV ● 1400 to 1 mbar
VD124P ● Set VD12 with VSP63MV ● 1000 to 1e-4 mbar
VD12S2 Vacuum Display And Control Unit

Vacuum Transducer

Are You Missing Out on Precision and Efficiency?

Imagine a world where your vacuum measurement is always spot-on, regardless of the environment. No more inaccurate readings due to contamination or varying gas types. This is the reality with Ezzi Vision Pty Ltd's range of vacuum transducers. Is your current setup holding you back from achieving your desired precision and reliability? It's time to step up your game with our innovative solutions.

Why Choose Ezzi Vision's Vacuum Transducers?

At Ezzi Vision, we pride ourselves on delivering state-of-the-art vacuum transducers designed to meet the stringent demands of various industrial applications. Our products are about advanced technology, reliability, durability, and ease of use. Here's why we stand out:

Unmatched Accuracy: Our transducers provide highly accurate measurements, ensuring you get the precise data you need.
Robust and Reliable: Built to withstand harsh conditions, our products resist dirt, contamination, and various gas types.
Quick Response Time: With a short response time, you can trust our transducers to deliver real-time, reliable data.

VSC43 Piezo Vacuum Transducer

The VSC43 Piezo Vacuum Transducer is a powerhouse of precision. It is Designed to compute absolute pressure in the rough vacuum range. It features a robust ceramic sensor that resists contamination and dirt.

Key Features:

Chemical Resistance: Thanks to the FKM sealing, the ceramic sensor is highly chemical resistant.
High Accuracy: Delivers reliable and stable readings.
Quick Response: Short response time for real-time data.
Temperature Compensation: Maintains accuracy across varying temperatures.
Easy Integration: Compatible with PLCs and other system controllers.
Stainless Steel Connection: Comes with a DN 16 ISO-KF flange and G1/4 female thread.

Variants:

VSC43MA4: Vacuum Transducer with 4-20 mA output.
VSC43MV: Vacuum Transducer with 0-10 V output.

VCC200 Capacitance Vacuum Transducer

For those who need to measure absolute pressure with superior accuracy, the VCC200 Capacitance Vacuum Transducer is the perfect choice. Its durable ceramic sensor ensures it remains unaffected by dirt or contamination.

Key Features:

Superb Accuracy: Provides high-resolution measurements.
Corrosion Resistance: The aluminium oxide ceramic sensor is highly resistant to corrosion.
Gas Type Independence: Measurement is independent of gas type, even below 20 mbar.
Robust Housing: Metal housing with IP54 protection.
Stainless Steel Connection: Features a DN 16 ISO-KF flange and G1/4 female thread.

VSP63 and VSP64 Vacuum Transducers

The VSP63 and VSP64 models utilise the latest Thyracont impulse Pirani sensor technology. They offer high resolution and a wide measuring range. These advanced transducers are designed for maximum temperature compensation and enhanced stability.

Key Features:

High Reliability: Reproducible and stable measurements.
Compact Design: Ideal for industrial applications.
Wide Measuring Range: Higher resolution in rough vacuums.
Oil and Solvent Vapour Resistance: Filament is protected by a metal screen.
Digital Adjustment: Precise push-button zero pressure and atmosphere adjustment.
Low Power Consumption: Efficient operation with reduced self-heating.

Variants:

VSP63MA4: Vacuum Transducer with DN16KF and 4-20 mA output.
VSP63MV: Vacuum Transducer with DN16KF and 0-10V output.
VSP64MV: Vacuum Transducer with DN16CF-F and 0-10 V output.

VD12 Vacuum Display and Control Unit

The VD12 is an intelligent control unit perfect for apparatus and plant engineering applications. It supports simultaneous control of two measuring channels and integrates seamlessly with all Smartline and 0-10 V Analogline transducers.

Key Features:

Dual Channel Control: Manages two measuring channels simultaneously.
Easy Operation: User-friendly, menu-driven guidance.
Relay Switches: Features two potential-free relay switches.
Large Display: Graphic LCD with background illumination for easy reading.
USB Interface: This is for process documentation and setpoint programming.
VacuGraph Software: Facilitates documentation, evaluation, and remote control of vacuum processes.

Make an Informed Decision

When choosing a vacuum transducer, consider the following:

Accuracy: Ensure the device provides the precision you need.
Durability: Check if it can withstand harsh conditions and contamination.
Response Time: Look for a transducer with a quick response for real-time data.
Integration: Make sure it's compatible with your existing systems.
Support: Opt for a brand that offers reliable customer support and after-sales service.

Why Ezzi Vision?

At Ezzi Vision, we are committed to providing products that meet and exceed your expectations. Our vacuum transducers are designed with the latest technology to make sure you get the most accurate and reliable measurements. Plus, our team is always here to support you, from selection to installation.

Don't Miss Out on Precision and Reliability

Upgrade to Ezzi Vision's vacuum transducers today and experience the difference. Whether you need the robust VSC43 Piezo, the highly accurate VCC200 Capacitance, or the advanced VSP63/VSP64 transducers, we have the perfect solution for your needs.

Ready to take the next step? Contact us today to know more about our products and how they can truly benefit your operations. Our team of experts is here to help you find the best vacuum transducer for your specific needs.

At Ezzi Vision , we believe in precision, reliability, and innovation. Our vacuum transducers are designed to give you the best possible performance, ensuring your operations run smoothly and efficiently. Don't settle for less-choose Ezzi Vision and experience the future of vacuum measurement technology.

Frequently Asked Questions

What makes Ezzi Vision’s vacuum transducers unique?

Our vacuum transducers are designed to deliver top-tier accuracy and dependability. They give you precise measurements, resist contamination, and respond quickly. Built to handle tough environments, our transducers are easy to integrate with your current systems. At Ezzi Vision, we focus on providing products that keep your operations smooth and efficient. Our vacuum transducers are the perfect choice if you want reliable performance and the latest technology.

How do I choose the right vacuum transducer for my needs?

Selecting the right vacuum transducer can be simple! Consider the accuracy you need, the transducer’s durability, its response time, and whether it will work well with your existing systems. Don’t worry. You’re not alone in this. Our friendly team at Ezzi Vision is here to help you find the perfect match. We offer several models to meet different needs, ensuring you get the best and most reliable measurements.

Can Ezzi Vision’s vacuum transducers handle harsh environments?

Absolutely, our vacuum transducers are built tough! They’re designed to thrive in harsh conditions, resisting dirt, contamination, and various chemicals. Whether you’re dealing with oil vapours, solvents, or extreme temperatures, our transducers stay accurate and stable. You can rely on them to give consistent performance regardless of the surroundings. We ensure you always get dependable results, even in the most challenging situations.

Are Ezzi Vision’s vacuum transducers easy to integrate with existing systems?

Yes, they are! Our vacuum transducers are made with user-friendly integration in mind. They have standardized connections and outputs that work seamlessly with PLCs and other controllers. This means you can easily add our transducers to your current setup without any hassle. We design our products to make your life easier, ensuring everything runs smoothly and efficiently with minimal effort on your part.

What kind of support can I expect from Ezzi Vision?

You can count on us for exceptional support! From helping you choose the perfect vacuum transducer to assisting with installation and troubleshooting, our team guides you every step of the way. We’re dedicated to ensuring you have a smooth experience and getting the most out of our products. At Ezzi Vision, your satisfaction is our top priority, and we’re always ready to help.
