The Blank Off Flanges - NonRotatable are available in the following sizes: CF 16, CF 35, CF 63, CF 100, CF 150, CF 200. \n \nThe Blank Off Flanges - NonRotatable are made out of Stainless Steel. \n \nThe high sealing and the low leak rate performance of the CF Flange connection is due to the gasket material. \n \nWhen the CF Flange is correctly assembled, the knife edge is compressed onto the flat copper gasket forcing the seal material outwards to the flange. \n \nThe gasket is enclosed and will not edge even under the highest bakeout temperatures. \n

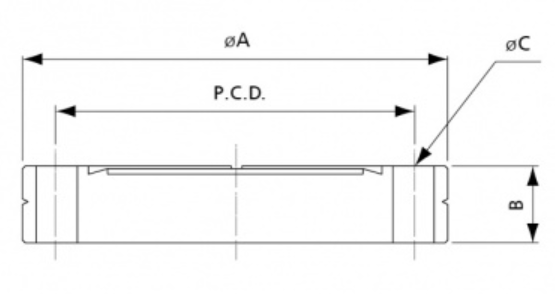

| Model No. | Size | Material | A | B | C*No. | Inch spec. | P.C.D. |
| EV03001 | CF16 | 304 S.S. | 33.8 | 7.5 | 4.4*6 | 1-1/3" | 26.9 |
| EV03002 | CF35 | 304 S.S. | 69.5 | 12.7 | 6.7*6 | 2-3/4" | 58.7 |
| EV03003 | CF63 | 304 S.S. | 113.6 | 18 | 8.4*8 | 4-1/2" | 92.1 |
| EV03004 | CF100 | 304 S.S. | 151.6 | 20 | 8.4*16 | 6" | 130.3 |
| EV03116 | CF150 | 304 S.S. | 202.5 | 22 | 8.4*20 | 8" | 181 |
| EV03117 | CF200 | 304 S.S. | 253.2 | 24.7 | 8.4*24 | 10" | 231.8 |
