These KF vacuum metal hoses follow KF standards. Commonly used to build foreline vacuum plumbing and process systems. They are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges. The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50. They are made of corrosive-resistant stainless steel. \n

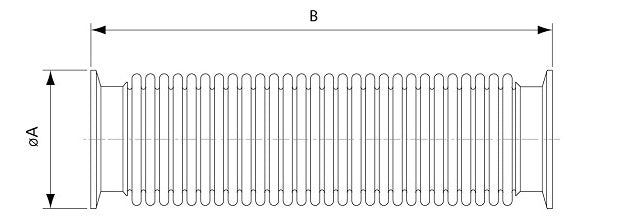

Part No.	Size	A	B
EV01067	KF16	30	250
EV01068	KF16	30	500
EV01069	KF16	30	800
EV01070	KF16	30	1000
EV01202	KF16	30	2000
EV01071	KF25	40	250
EV01072	KF25	40	500
EV01073	KF25	40	800
EV01074	KF25	40	1000
EV01203	KF25	40	2000
EV01075	KF40	55	250
EV01076	KF40	55	500
EV01077	KF40	55	800
EV01078	KF40	55	1000
EV01204	KF40	55	2000
EV01079	KF50	75	250
EV01080	KF50	75	500
EV01081	KF50	75	800
EV01082	KF50	75	1000
EV01205	KF50	75	2000
