These KF-type full nipples follow KF standards and have different flange sizes from KF-16 to KF-50. They are commonly used to build fore-line vacuum plumbing and process systems. Because they are simple to put together, they are frequently referred to as quick flange fittings. A circumferential clamp and centring ring creates the vacuum seal between the connecting flanges. An O-ring made of rubber elastomer is part of the centring ring. Quick flange fittings come in the following standard sizes: KF-10, KF-16, KF-25, KF-40, and KF-50. They are made up of corrosion-resistant stainless steel. \n

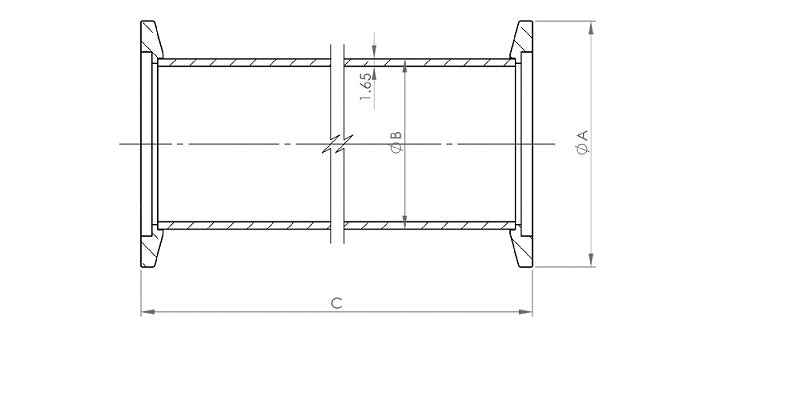

Part No.	Size	A	B	C
EV01026	KF16	30	19.05	100
EV01027	KF25	40	25.4	100
EV01028	KF40	55	38.1	100
EV01029	KF50	75	50.8	100
