A solar simulator made for controllable indoor test facility under laboratory conditions.

A Stable Solar Simulator

The ISOSun is a stable solar simulator that provides homogenous light simulation over large area with easy implementation of filters, neutral density filters, cooling and wiring. It is optimized for longterm lifetime and stability studies of photovoltaic devices and various materials.

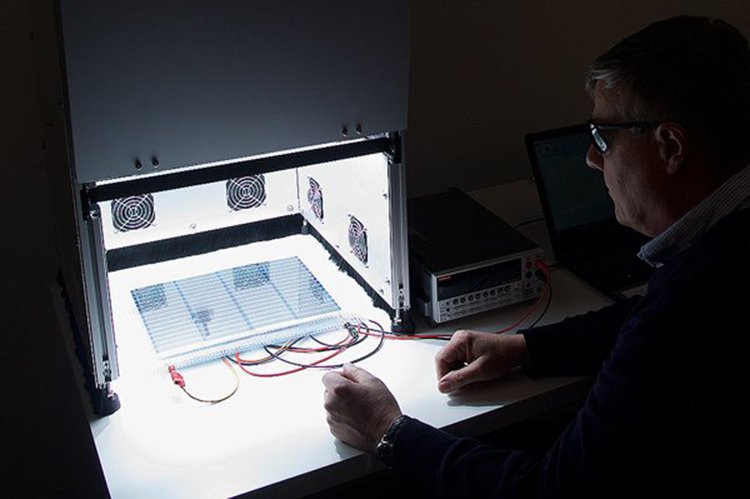

The ISOSun solar simulator enables reproducible testing of either many small solar cells simultaneously or of a few large area modules (up to 30 x 30 cm2), all according to the ISOS protocols when combined with our Source Measure Units. The large experimental compartment with ventilation fans enables good access with easy wire routing for external measurement devices.

An integrated temperature sensor and photo diode provide instant data acquisition and make adjustments possible.

Included Equipment

• ISOSun Cabinet with All Controls and Electrical Lead
• Integrated Digital Thermometer
• Integrated Digital Light Intensity Meter
• Fan Cooling of Test Chamber
• "Fast Change" Filter Tray
• Standard Filter
• Light Bulb

Features

Homogeneous Light Distribution

Very Light Stable Over Time

Optimized Reflector Design and Filter

Ideal for Long-term Lifetime & Stability Studies:

• Solar Cells
• Paints and Coatings
• Plastic Materials

Metal-Halide Light Source (Full Light Spectrum)

Ergonomic Design & Easy Wire Routing

Fast Light Bulb Change

Tray System for Filters

Fully CE Approved

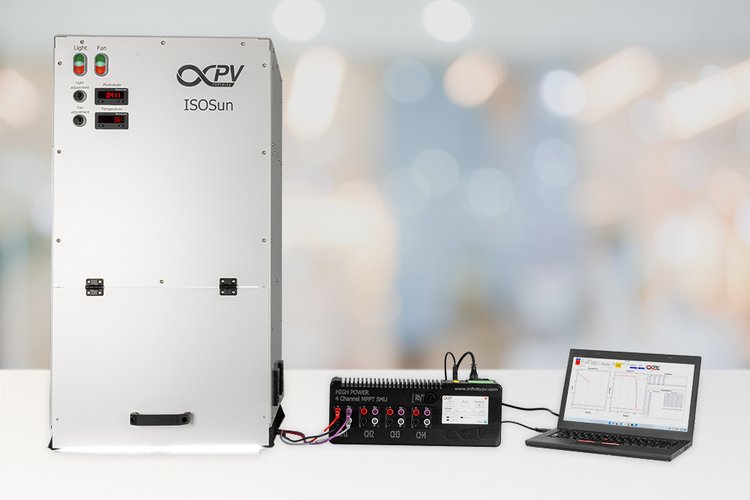

Optional Software/Hardware Pack:

• Source Measure Unit with MPPT
• Lifetime Studies (According to ISOS Protocols)
• CalCell Reference Cell
• Temperature and Relative Humidity Probe
